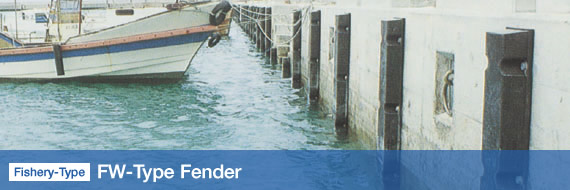

Fishery-Type Fenders

This fender is designed so that it may display a low reaction load at an initial deflection stage for a soft shock to a small ship.The wide contacting face lowers the face pressure to secure the safe berthing of small or light construction.

Size Range
H x W1x W2(mm) Length(mm) kN-m/m tf-m/m
100 x 260 x 300 500, 1000, 1500, 2000 2.70 0.28
130 x 260 x 300 4.56 0.46

Portfoilo of FW-Type Fender

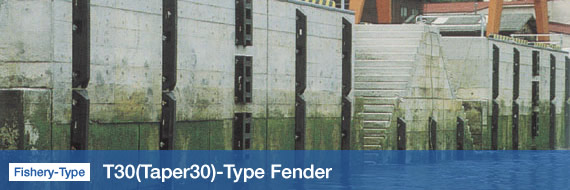

T30(Taper30)-Type Fender

[漁港型] テーパー30型

Special tapered(32.5 deg.) legs prevent from hooking and scratching a small ship' belt.

Size Range
H x W1x W2(mm) Length(mm) kN-m/m tf-m/m
150x120x520 1000, 1500, 2000 6.07 0.62
200x160x700 10.8 1.10

Portfolio of T30(Taper30)-Type Fender
